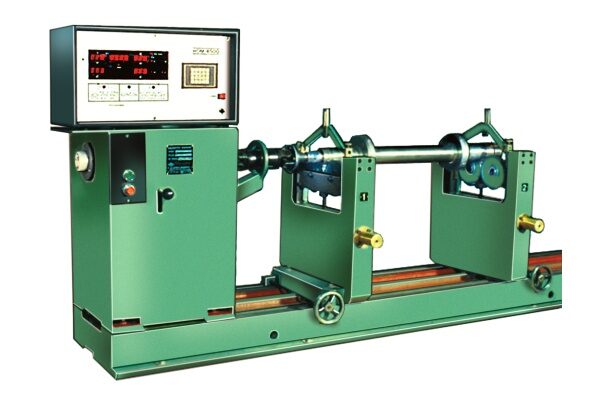

Horizontal Dynamic Balancing Machines

Blue Star E&E provides belt-driven/end-driven horizontal balancing machines with microprocessor-based measuring panels that are used for balancing different shapes of rotors like rotors of electrical machines, crankshafts, cylinders, gas compressors, turbine rotors, rotors of centrifugal pumps, and any other type of rotors of rotating machines. These machines feature very simple operations and come in dual/multi-plane as well with their working cycles fully automatic.

Features

Digital display for unbalance indication: Amount and angle for unbalance for both planes displayed on separate DPMS
Accuracy ±1 Digit for the amount and ±1 Degree for angle
Digital display for RPM indication
Auto Stop: No necessary to stop the machine once started. It stops automatically after stabilization of unbalance results
Simultaneous Indication: Amount and Angle of unbalance in both planes displayed simultaneously and remains displayed (Stored) till next run. This eliminates the operation of the plane selector and reduces the additional time for stabilization of readings in another plane
Keyboard: Data of rotor dimensions and balancing tolerance i.e., values of A, B, C, R1, R2, tl1, tl2, are fed by key operation.
Tolerance Indicators: Separate LEDs are provided for both planes which glow when unbalance is reduced within balancing tolerance
Self-Check: Panel is provided with “Self-Check” mode which checks the proper functioning of digital displays, LEDs are cyclic operation. This helps immediate fault detection
